Human Body 2MP Thermal Face Scanner Test Walk Through Temperature Check Kiosk

Name: Human Body 2MP Thermal Face Scanner Test Walk Through Temperature Check Kiosk
Brand: Beward
Price: 1 USD

Brand Name : Beward

Model Number : B2002FR-8I-CM-BTH-L06

Certification : ce, FCC, CCC, RoHS

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram,PayPal

Supply Ability : 10000/month

Delivery Time : About 3-7 working day for sample;7-15 working day for normal order

Packaging Details : Neutral packing

Processor : Sextuple processor + 2G memory + 32G flash

Face capacity : 24K

Transaction Record : 160K

Operating system : Linux Operating system

Recognition Time : less than 0.5S

Recognition Distance : 0.5m-2m

Effective pixels : 2MP,1920*1080

Operating temperature : -45℃ - +70℃

Lens : 6mm

Data Storage : Cloud, Memory Card

Contact Now

Human Body 2MP Thermal Face Scanner Test Walk Through Temperature Check Kiosk

Human Body Temperature Measurement Detection Time Attendance Face Recognition Terminal Access Control System

Product Advantage:

our own developed face tracking exposure algorithm(linear mode), WDR≥110DB

own patent protected file storage system (not Linux's original file system)

used all glass material aspheric lens

adopted own top-class face recogntion algorithm

Stable quality control, all electronic components choosed from
first-line suppliers, such as Samsung brand memory and Flash

Hardware&software Customerized service, protect customer own design and confidential data

Product Description

In addition, We provide face recognition SDK for secondary development, making it easier for partners who are professional at face recognition algorithm and Face search APP design. Our self-developed face recognition platform (FaceGateMngPlatform ) is also available for partners who lack good enough development capabilities

Time Attendance Management Software

Features&Advantages

Support Real Time Human Body Detection .

Using Linux operating system, better system stability.

Face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s.

Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.

Support for AD file playback.

Support PIR human body sensing wake-up function.

Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.

Support 65000+ face matching library and 250,000 face recognition records.

Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.

Support tracking of personnel movements under strong backlight conditions.

The host supports an external ID card reader (For Chinese ID card).

The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.

Specifications:

Hardware
Processor	Sextuple processor + 2G memory + 32G flash
Operating system	Linux Operating system
Storage	Support TF card storage
Camera module	U21R
Sensor	1/2.8" Progressive Scan CMOS
Lens	6mm(optional)
Performance
Recognition height	1.2~2.2 meters,Angle can be adjusted
Recognition distance	0.5~5 meters,depends on lens
Face angle	30 degrees left and right, 30 degrees up and down
Recognition time	Less than 1 second
Function	Support 250,000 capture library, real-time capture, support 65,000 list library
Interface
Switch inputs	1ch switch input
Power	DV12V/3A
Network Interface	1x RJ45 10M / 100M Adaptive Ethernet port
Wiegand Interface	1ch Wiegand interface input/output
USB interface	1ch USB interface
Camera Data
Camera	Two cameras: 1x B/W camera ; 1x color camera
Effective pixels	2MP,1920*1080
Min Illumination	Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR	≥50db(AGC OFF)
WDR	≥120db
Video Coding	H.265 Main Profile /H.264 BP/MP/HP /MJPEG
Resolution	Main stream:50Hz: 25fps (1920×1080,1280×720) 60Hz: 30fps (1920×1080,1280×720)

	Sub stream:720576,1-25(30)fps/640480,1-25(30)fps 320*240,1-25(30)fps

Product Images:

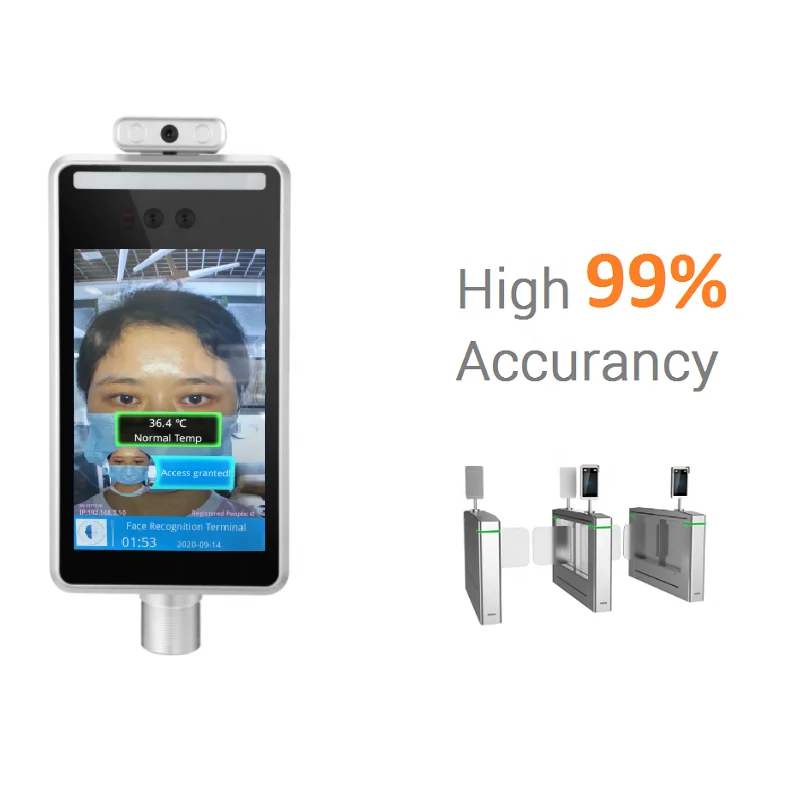

Human Body 2MP Thermal Face Scanner Test Walk Through Temperature Check Kiosk
